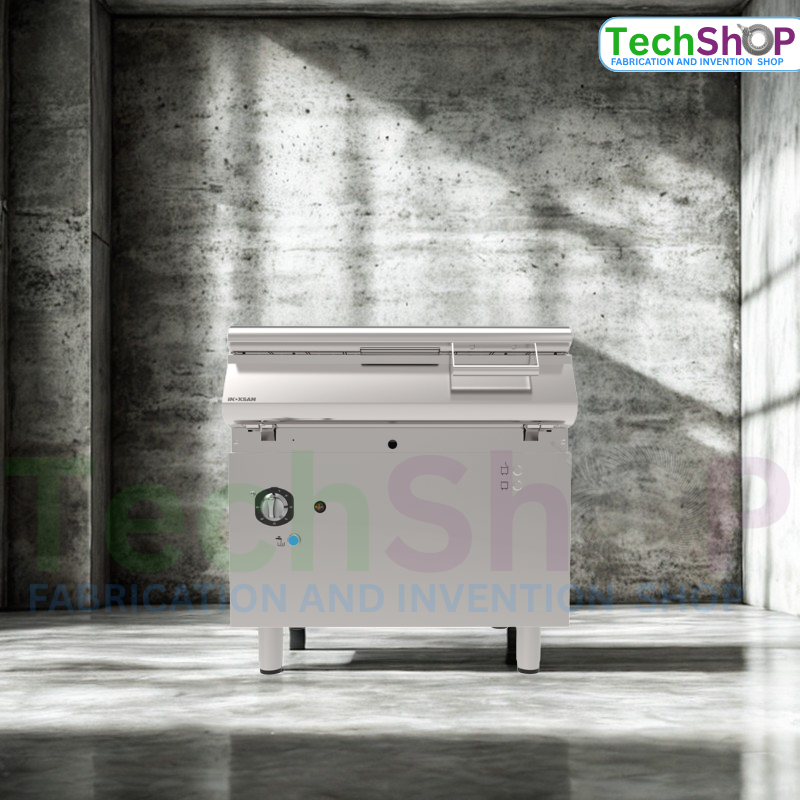

Gas Tilting Bratt Pan 60L – 13kW | Industrial Cooking Equipment
Gas Tilting Bratt Pan 60L – 13kW | Industrial Cooking Equipment
The TechShop Engineering Gas Tilting Bratt Pan (60L) delivers exceptional performance for industrial and commercial kitchens. Built from premium-grade stainless steel, this heavy-duty unit features automatic tilting, multi-step temperature control (50–300°C), and homogeneous heat distribution, making it ideal for frying, boiling, braising, or sautéing in high-volume food production environments.
If you have any questions or need assistance, please don't hesitate to reach out to us!
Contact UsTechnical Overview
The Gas Tilting Bratt Pan – 60L (13kW) from TechShop Engineering is an advanced industrial-grade cooking system engineered for reliability, precision, and efficiency. It’s an all-in-one solution for restaurants, catering services, and food processing industries, ensuring consistent cooking performance and safety.
-Build Quality & Materials
-
Constructed from 18/8 Cr-Ni stainless steel with a 2mm-thick satin-finished body for maximum durability and hygiene.
-
Features a double-walled stainless steel lid designed for reinforcement and long-term heat retention.
-
Equipped with an additional welded metal base for superior heat distribution and stability.
-
Fitted with adjustable stainless-steel pipe legs for perfect alignment on any surface.
-Performance Highlights
-
High-performance 13kW gas burner with pipe-type design ensures even heating across the cooking surface.
-

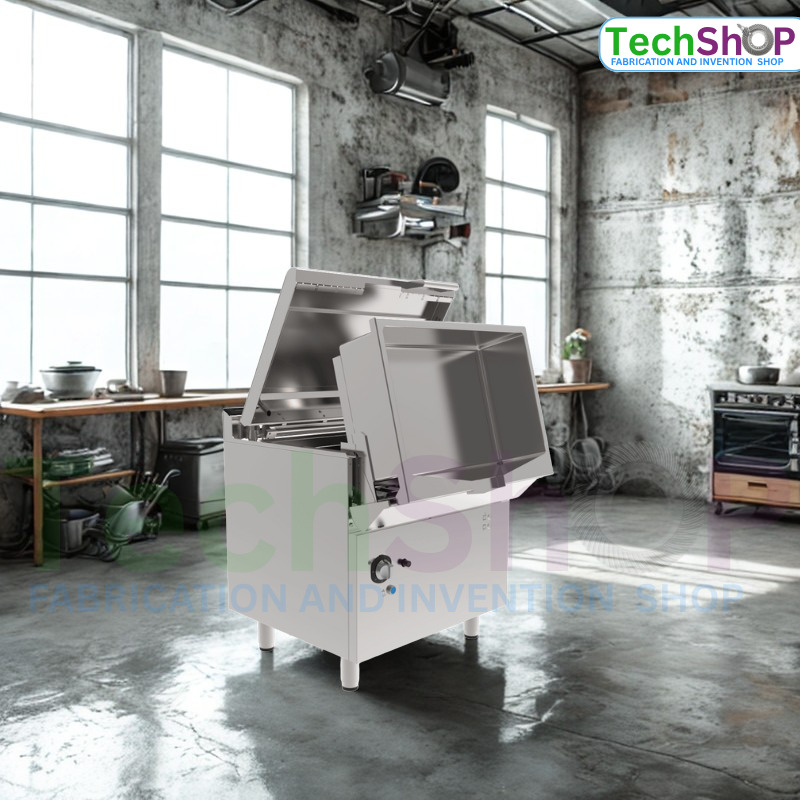

Automatic tilting mechanism (85°) for effortless emptying and cleaning.
-
Multi-step thermostat (50°C–300°C) for precise temperature adjustment.
-
Flame failure safety system automatically shuts off gas if the flame goes out.
-
Compatible with LPG or Natural Gas (G31, G25, G25.1, G27, G2.350) — easily convertible without modifications.
-
Automatic ignition button for fast and safe startup.
-
Limit thermostat protection automatically stops power supply in case of overheating.
-Applications & Industries
This bratt pan is perfectly suited for:
-
Hotels and restaurants
-
Industrial kitchens and canteens
-
Catering and food production plants
-
Institutional kitchens (schools, hospitals, factories)
It can perform multiple cooking tasks — frying, boiling, braising, searing, and simmering — making it an essential tool for large-scale operations.
-Key Benefits for Customers
Energy-efficient performance with excellent heat retention
✅ User-friendly tilting system for easy operation and cleaning
✅ Robust stainless-steel construction for long-term durability
✅ Accurate temperature control for consistent cooking results
✅ Safe operation with advanced gas control and flame protection
| Parameter | Specification |
|---|---|
| Model | TBP-60 |
| Device Capacity | 60 Litres |
| Total Power | 13 kW |
| Gas Inlet | ¾ inch |
| Gas Consumption | 11180 Kcal/h |
| Temperature Range | 50°C – 300°C |
| Cooking Area (W×D×H) | 710×435×200 mm |
| Tilting Angle | 85° (Automatic) |
| Material | 18/8 Cr-Ni Stainless Steel (2mm thick) |
| Lid Type | Double-walled stainless steel |
| Heating Type | Gas |
| Gas Type | LPG / Natural Gas (Convertible) |
| Ignition System | Automatic Ignition |
| Safety Features | Flame Failure Protection, Limit Thermostat |
| Feet Type | Adjustable Stainless-Steel Pipe Legs |
| Control Type | Multi-Step Thermostat Control |
